IO Module

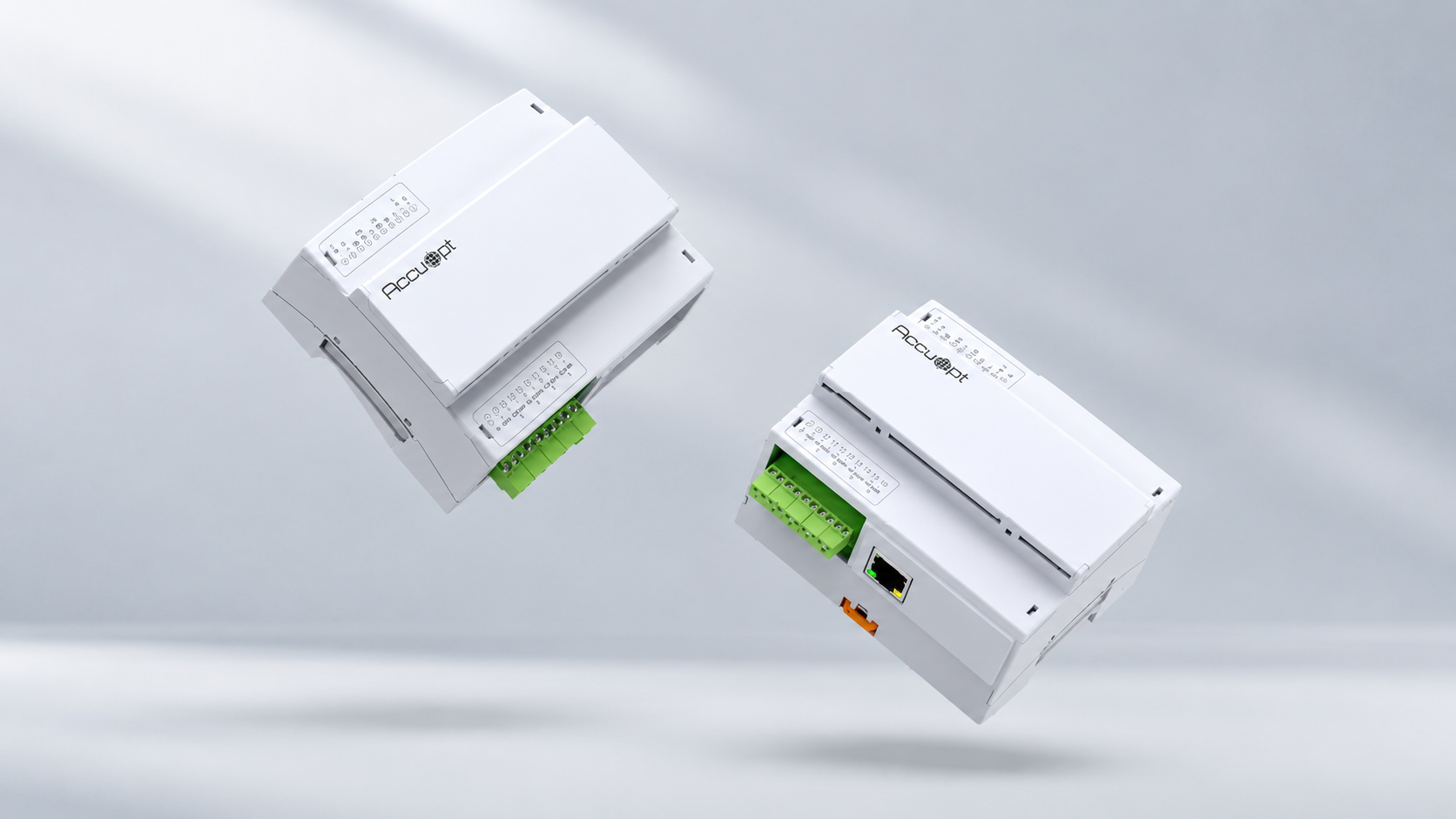

A modular IO unit that had to clip to a rail, sit shoulder to shoulder with its neighbours and stay serviceable.
A DIN-rail part that installs in seconds.
Industrial design · 3D CAD · DFM
What we did
- Detailed the rail clip for a positive snap and a tool release.
- Set the module pitch so a full rail stays within the cabinet width.
- Kept the labelling area clear of the wiring path.
- Released CAD, DFM notes and a labelling template.
Outcome
A module that clips on, lines up and stays legible after wiring.
